The Tesla Semi and Pilot Travel Centers Partnership - An Engineering Deep Dive

Or, a return to the beginning of this blog...

When I started this Substack I was focused on the electrification of freight. It’s been fun to return to this topic for my first post in a long time.

The electrification of the North American heavy-duty logistics sector is one of the largest engineering and economic challenges of the twenty-first century. Class 8 vehicles (trucks with a Gross Vehicle Weight Rating (GVWR) exceeding 33,000 pounds) are the backbone of the US supply chain, moving ~72% of the nation’s freight by weight. However, their reliance on diesel makes them a primary contributor to greenhouse gas emissions and harmful pollution, responsible for nearly 25% of the transportation sector’s emissions footprint despite representing a small fraction of total vehicles on the road.

In January 2026, a definitive agreement between Pilot Travel Centers and Tesla signaled the increasing “realness” of electric freight. The partnership announced the deployment of a dedicated charging network at Pilot locations for the Tesla Semi, utilizing Tesla’s V4 power electronics infrastructure. This collaboration unites the largest operator of travel centers in North America with the company that has delivered the most viable Class 8 EV so far.

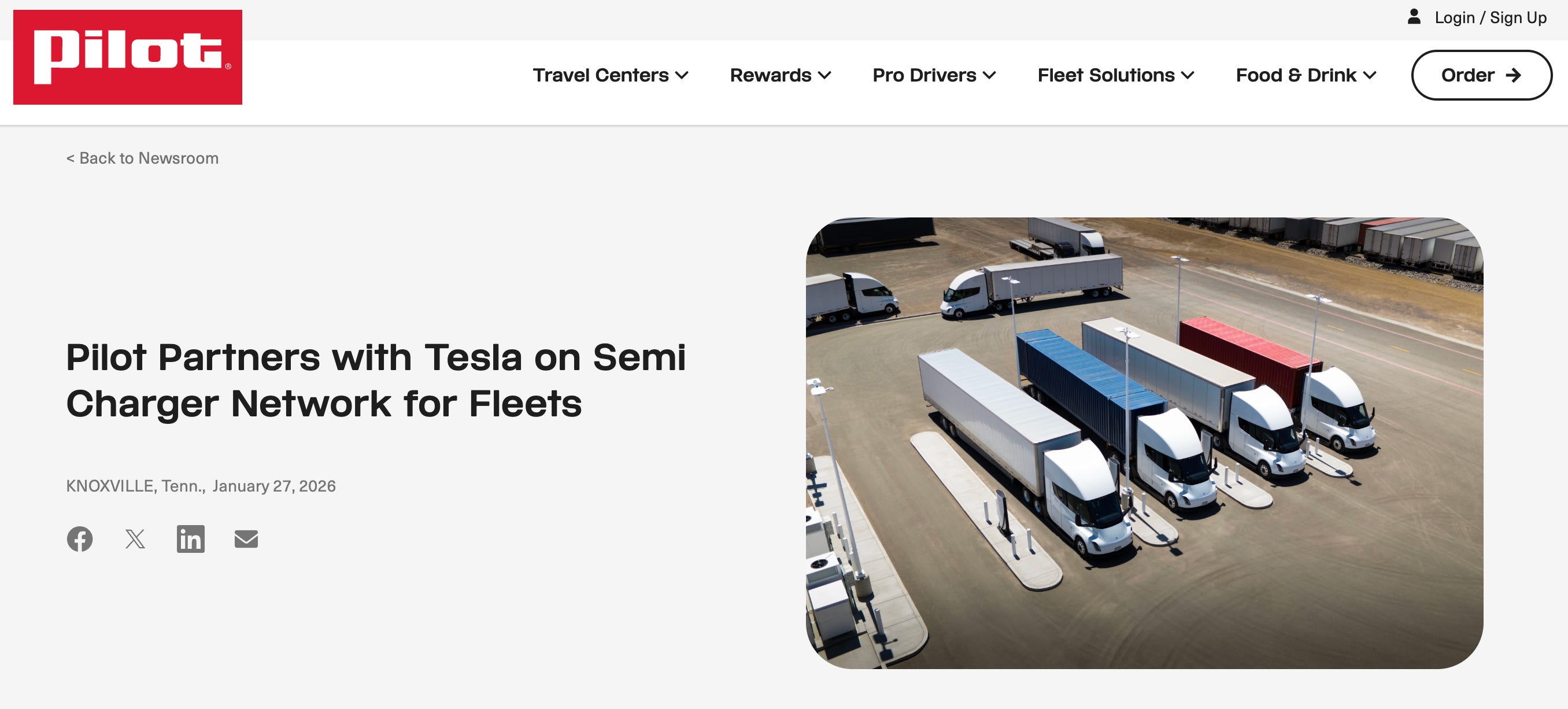

Announcing the news on Pilot’s website

The initiative involves the installation of high-power charging stations at strategic Pilot locations along the I-5 and I-10 freight corridors. Initial deployment targets approximately 20 locations across California, Nevada, New Mexico, Texas, and Georgia, with construction starting in the first half of 2026 and operational capability expected by the summer. Deployments will use Tesla’s proprietary “Megacharger” capabilities, delivering up to 1.2 MW of power per stall (!).

This report provides technical and strategic analysis of this partnership. I’ll dig into the thermodynamics of megawatt-scale charging, the electromechanical architecture of the Tesla Semi, the choice of the selected corridors, and the broader economic implications for the freight industry. I pull in data from the North American Council for Freight Efficiency (NACFE) “Run on Less” pilot programs, patent filings, and personal knowledge to help break down what this means for electric trucking.

The Physics of Class 8 Electrification

Let’s start with the math behind hauling 82,000 pounds at highway speeds. One area where diesel wins today is energy density. There is almost no other road transportation fuel that is as energy dense as diesel, at ~12,700Wh/kg. Over 60% of a diesel engine’s energy is lost to heat, making them incredibly inefficient, but when you’re working with liquid fuel it doesn’t matter. Lithium-ion batteries range from 250 to 300 Wh/kg, much less energy dense. Therefore EV trucks require a rigorous minimization of energy consumption forces to be competitive.

Energy Demand Modeling

The power (P_road) required to propel a Class 8 truck is the sum of the forces opposing motion multiplied by the vehicle’s velocity (v). These forces are aerodynamic drag, rolling resistance, and gravitational resistance due to grade. Here is the equation:

Where:

• Rho is the air density (~1.225 kg/m³ at sea level).

• Cd is the coefficient of aerodynamic drag.

• A is the frontal area of the truck

• Crr is the coefficient of rolling resistance.

• m is the vehicle mass (up to 82,000 lbs).

• g is the acceleration due to gravity (9.81 m/s²).

• and Theta is the road grade angle.

A conventional diesel cab-over or long-nose truck typically exhibits a C_d between 0.60 and 0.70. The Tesla Semi, utilizing a design inspired by high-speed rail aerodynamics features a tapered cab, side skirts, and active gap closure panels and targets a C_d of 0.36. This reduction is non-linear in its benefit; at 65 mph, aerodynamic drag accounts for over 50% of the energy consumption. By halving the drag coefficient, Tesla significantly reduces the battery capacity required to achieve a 500-mile range.

Energy Consumption Validation

Tesla claims an energy consumption of less than 2.0 kWh per mile for a fully loaded Semi. Validation of this figure is important for operators and infrastructure planners as it dictates how and when trucks will charge up.

Data from the NACFE “Run on Less” event provides independent verification. During a three-week pilot, a Tesla Semi operated by ArcBest’s ABF Freight division recorded an average consumption of 1.55 kWh/mile over 4,494 miles. Similarly, DHL Supply Chain USA reported an average of 1.72 kWh/mile operating at highway speeds. PepsiCo, operating 21 Semis out of Sacramento, confirmed similar efficiency metrics across mixed regional and long-haul duty cycles.

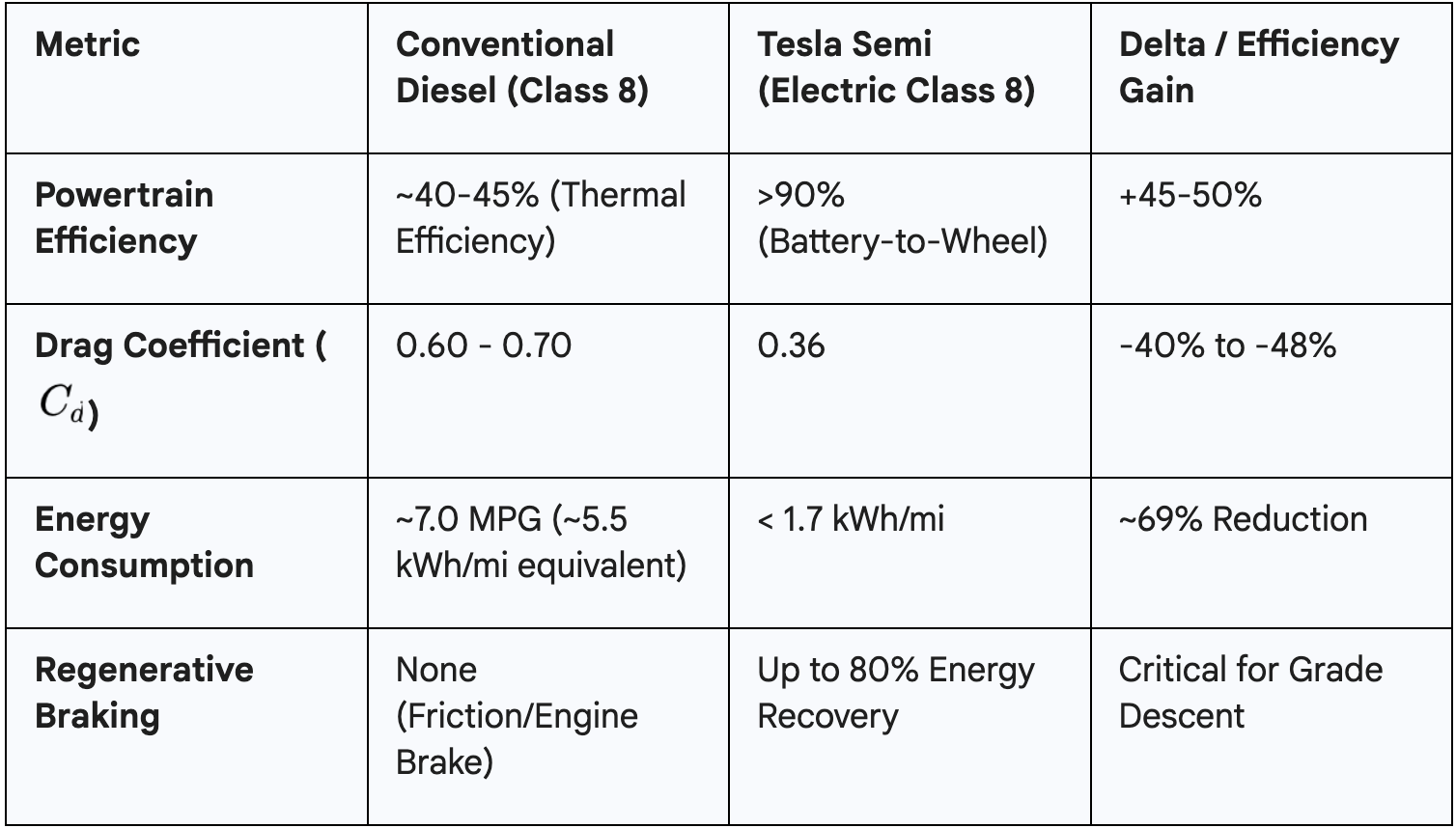

Here is a breakdown of key metrics comparing diesel trucks to the Semi:

A 1.7 kWh/mile consumption rate indicates that a 500-mile range requires a usable battery capacity of approximately 850 kWh (500 mi * 1.7 kWh/mile). Allowing for a buffer to protect battery health (depth of discharge management) and degradation overhead, the gross pack size is likely between 900 kWh and 1,000 kWh. This defines the infrastructure requirement: to replenish this energy reservoir within a driver’s mandated 30-minute break, the charging system must deliver energy at a rate exceeding 1 megawatt.

The Tesla Semi Technical Architecture

The Tesla Semi is designed as an EV from the ground up, leading to some important advantages. Let’s better understand the architecture.

The Tri-Motor Powertrain and Efficiency Dynamics

The Semi utilizes a tri-motor topology distributed across the two rear drive axles. This configuration is derived from the “Plaid” carbon-sleeved rotor technology developed for the Model S and Model X.

1. Efficiency Axle (Rearmost): This axle features a single Permanent Magnet Synchronous Motor (PMSM) mechanically geared for highway cruising speeds. This motor is continuously engaged and optimized for peak efficiency in the 55–65 mph steady-state operational band.

2. Performance/Torque Axle (Forward Drive): This axle is equipped with two induction motors. The engineering innovation here is the ability to mechanically declutch or electronically sleep these motors when their torque is not required. Unlike PMSMs, which generate back-electromotive force (back-EMF) and cogging torque when spun without load, induction motors can freewheel with negligible parasitic loss.

This “active engagement” strategy allows the Semi to operate as a single-motor vehicle during flat highway cruising to maximize range, while instantly engaging the two secondary motors for acceleration, grade climbing, or traction control events. This architecture is a large driver behind the sub-1.7 kWh/mi efficiency figures observed in the NACFE pilots.

High-Voltage Bus Architecture (1000V Class)

To support megawatt-level charging and high-power discharge without incurring massive resistive losses, the Semi employs a nominal 1000-volt electrical architecture. This is an increase from the 400-volt architecture common in light-duty passenger EVs (with the exception of a few 800V vehicles).

The physics dictate this choice. Power (P) is the product of Voltage (V) and Current (I): P=I*V. To achieve 1.2 MW charging at 400V, the system would need to push 3,000 Amps.

Managing 3,000 Amps requires immensely heavy copper conductors to mitigate resistive heating, which scales with the square of the current. By increasing the system voltage to 1,000V, the current required for 1.2 MW drops to 1,200 Amps.

This reduction in current allows for lighter cabling within the vehicle (reducing curb weight) and more manageable thermal loads within the charging connector and power electronics.

Infrastructure Engineering: The V4/Megacharger System

The Pilot partnership announcement explicitly identifies the use of Tesla’s V4 Cabinet technology. This distinction between the “cabinet” (power conversion unit) and the “charging post” (dispenser) is critical for understanding the site architecture.

The V4 Power Electronics Cabinet

While previous V3 cabinets shared approximately 350 kW across four posts, the V4 architecture is designed for much higher power, up to 1.2 MW.

The cabinet likely utilizes a common DC bus architecture fed by multiple AC/DC rectifier modules. This allows dynamic allocation of power. In a passenger car context, one cabinet might feed 8 posts. However, for the Semi application, the configuration implies that a single V4 cabinet could be dedicated to feeding one or two Megacharger stalls to ensure the full 1.2 MW is available when a truck docks.

To handle these power levels with acceptable efficiency, the power electronics almost certainly utilize Silicon Carbide MOSFETs. SiC devices allow for higher switching frequencies compared to traditional silicon IGBTs, reducing the size of magnetic components (transformers/inductors) and minimizing switching losses.

The Megacharger Dispenser and Liquid-Cooled Interconnects

Delivering 1,200 Amps to a vehicle creates a thermal bottleneck at the connector interface and within the charging cable. The resistive heating in a copper conductor is defined by Joule’s First Law: P_loss = I^2 * R . Even with a 1000V architecture, the current is substantial.

Tesla’s solution involves active immersion cooling. Patent filings and technical teardowns of the Megacharger connectors reveal a sophisticated thermal management strategy.

• Dielectric Fluid Cooling: Unlike V3 Superchargers, which use a water-glycol mix in a jacket around the cable, the Megacharger design pushes cooling to the limit. The connector utilizes a manifold assembly where a dielectric cooling fluid (potentially a hydrofluoroether like HFE-7100 or a specialized oil) flows through the cable and potentially into the connector pins’ housing.

• Concentric Sleeves: The connector design features electrical sockets surrounded by thermally conductive but electrically insulating sleeves. The fluid absorbs thermal energy directly from the contact interface (the point of highest resistance) allowing the conductor cross-section to remain relatively small.

• User Ergonomics: This liquid cooling is the only reason a human driver can physically lift the cable. A passive air-cooled cable rated for 1,200 Amps would be several inches thick and weigh dozens of pounds per foot. The liquid-cooled Megacharger cable remains flexible and manageable.

Grid Integration and Megapack Buffering

The installation of multiple 1.2 MW chargers at a single Pilot location presents a massive load to the local utility grid. A site with 8 stalls could theoretically demand nearly 10 MW if all stalls were active simultaneously. This “peaky” load profile is problematic for distribution transformers and incurs punitive “demand charges” from utilities.

This is exactly the problem that Electric Era solves with their battery backed technology for light duty EV charging stations. It will be interesting to see what Pilot and Tesla do to solve these demand charge challenges.

Corridor Analysis: The Logistics of I-5 and I-10

The choice of California, Nevada, New Mexico, Texas, and Georgia shows a focus on high traffic freight lanes, specifically the Interstate 5 and Interstate 10 corridors.

Interstate 5: The West Coast Spine

I-5 is the economic artery of the West Coast, linking the ports of Seattle/Tacoma and Los Angeles/Long Beach with the agricultural powerhouse of California’s Central Valley. The segment of I-5 known as the “Grapevine” (Tejon Pass) rises to an elevation of 4,144 feet. This is the single most demanding segment for electric trucks. Ascending this grade fully loaded requires massive energy discharge. Pilot locations at the base of the pass like Bakersfield and Tejon are critical. Trucks must charge to high SOC before the ascent. Conversely, the descent offers an opportunity for regenerative braking, potentially recovering 10-15% of the pack’s energy.

Interstate 10: The Transcontinental Connector

I-10 connects the Pacific Ocean (Santa Monica) to the Atlantic (Jacksonville), traversing the entire southern tier of the US. It is the primary route for goods moving from Asian manufacturing centers via LA ports to the Texas Triangle (Houston/San Antonio/Dallas) and the Southeast US.

The “Arizona Gap” Anomaly

One missing state surprised me - Arizona. You’ll be driving through Arizona to get from California to New Mexico, so it’s interesting to not see Arizona in the list of states in consideration. The distance from the California border (Blythe) to the New Mexico border is approximately 390 miles. While a 500-mile range Semi could theoretically make this crossing, operational realities (payload, headwinds, elevation gains) make it risky without a reliable mid-route charge.

Competitor WattEV is building a massive charging depot in Blythe, CA, right at the Arizona border. This site may serve as the de facto “bridge” for early adopters, assuming interoperability or adapter availability. The omission of Arizona suggests potential delays in securing megawatt-class interconnections with Arizona utilities (APS/SRP). Unlike ERCOT in Texas or the pro-EV regulatory environment in California, Arizona may present longer lead times for substation upgrades.

Operational Economics and Charging Timing

Let’s look at the economics and potential charging operations for a carrier with a fleet of Tesla Semi’s.

Total Cost of Ownership (TCO) Modeling

The primary driver for fleet adoption is TCO. What do the numbers look like?

• A diesel truck averaging 6.5 MPG at $4.00/gallon incurs a fuel cost of $0.61/mile.

• A Tesla Semi consuming 1.7 kWh/mile at a commercial electricity rate of $0.12/kWh (blended rate with demand charges managed) incurs an energy cost of $0.20/mile.

• This $0.41/mile savings translates to over $40K annually for a truck driving 100,000 miles. Over a 5-year ownership cycle, the fuel savings alone exceed $200,000, partially offsetting the higher upfront purchase price of the electric tractor.

Required Breaks

Truck drivers are mandated to take rest periods at certain times on their routes. US FMCSA Hours of Service rules mandate that a driver must take a 30-minute break after 8 cumulative hours of driving. Additionally, a driver must take a 10 hour break after 11 hours of driving in a 14 hour period. 8 hours of driving at 60 mph covers 480 miles. This nearly depletes a 500-mile battery.

If drivers are able to charge during their mandatory break time, the “downtime penalty” of the EV is effectively eliminated. The driver would be stopped regardless. People talk about “wasted time” for EV charging, but the Hours of Service rules actually help build the case for high powered Class 8 trucks.

Conclusion

The announced partnership between Pilot Company and Tesla represents the transition of heavy-duty electric trucking from experimental pilots to commercial reality. By tackling the thermodynamic challenges of megawatt-scale power delivery and aligning infrastructure deployment with the high-volume logistics arteries of I-5 and I-10, they hope to address the biggest barriers to Class 8 EV adoption and cement an early mover advantage.

The engineering analysis confirms that megawatt charging speeds are going to be necessary to get trucks back on the road in the same or similar timelines as diesel. Time is money in logistics, and if the Tesla Semi can truly recharge during the already mandated HOS 30 min break this is huge for winning over drivers and logistics companies.

While challenges remain, the deployment of this network establishes the physical truck charging backbone in areas outside of California. More and more the physics of the vehicle, the capabilities of the grid, and the economics of the fleet operator are converging toward a viable path to freight electrification at an increasingly rapid scale.
